Finalizing a deck-mounted or drop-in tub project means making critical hardware decisions. You need a fixture supporting a robust spout, independent temperature controls, and a hand shower. Selecting the wrong hardware causes severe plumbing complications. These errors lead to incompatible rough-in valves and inadequate spout reach. Insufficient flow rates severely delay your project timelines. Reworking a finished deck wastes thousands of dollars. You must evaluate every mechanical constraint before purchasing any trim kit. We designed this guide to provide an evidence-based evaluation framework. We help you assess dimensional compatibility and material durability. You will understand complex installation realities specific to advanced bathroom designs. By following these strict parameters, you avoid costly structural modifications. Proper knowledge prevents hidden plumbing failures before they ever happen. This approach ensures your bathroom upgrade remains functionally flawless for decades.
A true four hole bathtub faucet setup integrates a hand shower, requiring specific diverter mechanics and sub-deck clearance.
Spout reach and deck thickness are the leading causes of installation failure; verify these metrics before assessing aesthetics.
Prioritize a brass tub faucet with ceramic disc cartridges for longevity in high-moisture, high-use environments.
Never assume a new trim kit will fit an existing rough-in valve; mandate full-system compatibility checks.

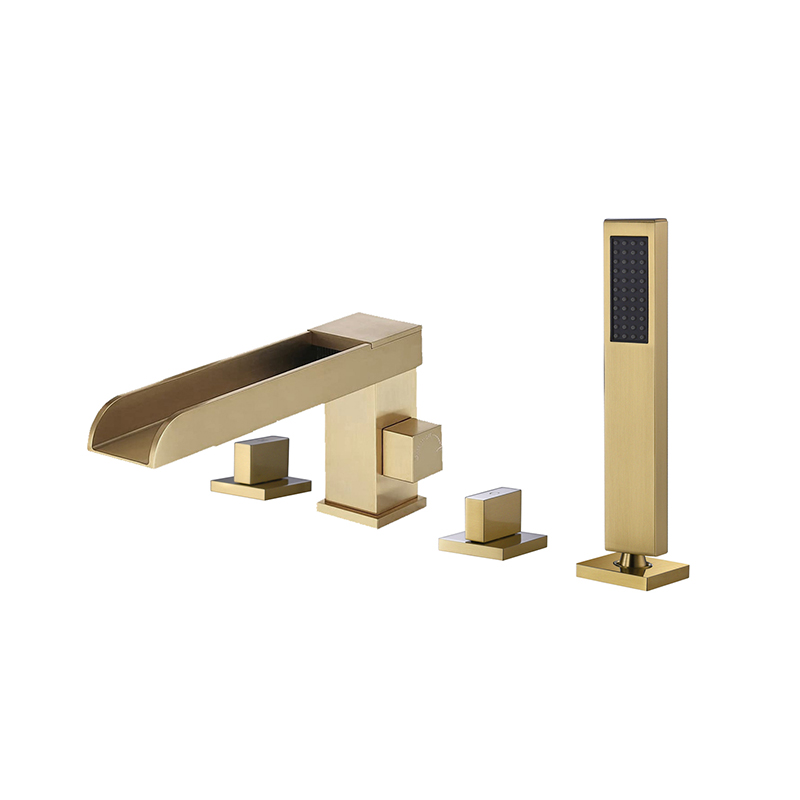

A standard four-hole setup divides water control into distinct functional components. You install a dedicated hot water valve and a separate cold water valve. The system also includes a central delivery spout and an independent diverter. This diverter mechanism controls the integrated hand shower. Separating these elements provides superior temperature accuracy. It also creates a balanced visual footprint along the tub deck. Plumbers prefer this separated architecture. It isolates individual parts during future maintenance tasks.
Specifying a bathtub faucet with hand shower elevates the entire bathing experience. It upgrades a standard roman tub faucet from purely functional to highly maintenance-friendly. You can effortlessly rinse away soap residue or clean the basin corners. This targeted spray helps wash pets or rinse young children safely. The added convenience brings massive practical value over time. Everyday cleaning tasks become significantly less physically demanding. You avoid awkward bending and scooping water manually.
Filling a large soaking tub demands exceptionally high Gallons Per Minute (GPM). Standard bathroom sink fixtures produce only 1.2 to 1.5 GPM. A dedicated tub filler must deliver a minimum of 10 to 15 GPM. This rapid flow speed prevents water from cooling before the basin fills completely. Modern soaking tubs hold between 60 and 80 gallons. A low-flow fixture would require nearly an hour to fill these vessels. High GPM ensures an optimal bathing temperature. Always check your local plumbing codes to verify maximum allowable flow rates.
Measuring for a deck mounted bathtub faucet requires extreme precision and foresight. The spout reach must clear the tub rim entirely. It needs to extend adequately into the interior basin. If it falls short, water runs down the slope and damages the surrounding deck. Spout height acts as another critical metric. The fixture must accommodate the tub's interior slope correctly. A spout mounted too high causes excessive splashing. A spout mounted too low interferes during daily use.
You must pay strict attention to the thread lengths on mounting shanks. Thick stone slabs or custom tiled decks often exceed standard shank limits. These heavy materials demand specialized mounting hardware. You frequently need aftermarket extension kits to secure the valves. Plumbers often discover this limitation too late. This oversight causes severe delays during the final trim-out phase. Always measure the finished deck thickness before finalizing your hardware order.
Manufacturers clearly list center-to-center spacing limits on their specification sheets. Most four-hole systems allow 8 to 16 inches of total spread. You must also account for flexible connection hoses beneath the deck. Sharp hose bends restrict water pressure or cause sudden leaks. Installers need adequate room to maneuver wrenches and secure mounting nuts. Crowded hole spacing complicates these essential connections.
Measurement Metric | Standard Tolerance Range | Critical Project Consideration |
|---|---|---|
Spout Reach | 2 to 3 inches past inner rim | Prevents water running down the interior slope and causing deck damage. |
Spout Height | 4 to 8 inches above tub rim | Balancing splash reduction against physical user clearance. |
Deck Spread | 8 to 16 inches center-to-center | Accommodates under-deck hose routing securely without kinking. |
Deck Thickness | 1.5 to 2 inches (Standard) | Requires specific extension shanks for thick granite or marble materials. |
A solid brass tub faucet serves as the mandatory baseline for credible installations. Solid brass resists hard water corrosion efficiently. It handles extreme thermoshock better than zinc alloys or cheap plastic composites. Sudden temperature changes cause inferior metals to expand and contract unevenly. This structural integrity prevents internal micro-cracks from forming over years of heavy use. Weight serves as a reliable indicator of solid brass construction. Heavier fixtures generally indicate superior metal density.
You must require the inclusion of ceramic disc valves inside your chosen fixture. Older compression valves utilize rubber washers to stop water flow. These rubber washers degrade quickly under high-volume tub filling scenarios. They harden, crack, and lead to inevitable dripping issues. Ceramic discs provide a permanent watertight seal. Two polished ceramic plates slide against one another seamlessly. They require almost zero maintenance over their operational lifespan. This technology withstands abrasive sediment found in municipal water supplies.
The exterior finish entirely dictates visual longevity. Physical Vapor Deposition (PVD) finishes bond molecularly to the underlying metal base. They resist harsh chemical cleaners and daily physical wear beautifully. PVD coating happens inside a vacuum chamber for absolute uniformity. We strongly advise skepticism toward uncertified matte or brushed exterior coatings. Cheap powder-coated paints peel and chip easily. Scratched finishes expose the metal underneath to rapid oxidation. Choose established brands offering transparent finish warranties.
The visible trim kit represents only half the purchased product. Buying a trim-only kit without a compatible rough-in valve poses immense risk. Proprietary rough-in valves govern how water flows and mixes beneath the deck. Manufacturers use unique spline counts on their cartridge stems. You cannot force a Moen handle onto a Delta rough-in valve. Failing to secure the correct matching valve halts the entire installation. Always verify complete system availability before scheduling your plumber.
Sub-deck accessibility represents a critical compliance and maintenance requirement. Modern building codes mandate clear access to hidden plumbing connections. An access panel simplifies future maintenance tasks significantly. It allows quick leak inspections without destroying costly tile work. You should integrate these panels thoughtfully into the surrounding architecture. Many designers hide them inside adjoining closets or discreet cabinetry. Ignoring this requirement guarantees expensive demolition during future repairs.
You must carefully compare placement options before drilling holes. Traditional deck placement centers the fixture at the tub's head. A side mounted bathtub faucet approach offers different ergonomic advantages. Side-mounting changes the required length of the flexible hand shower hose. It also heavily impacts how internal hoses route under the deck structure. You must ensure the chosen location avoids internal wooden framing joists. Drilling through structural supports compromises the deck integrity.
Best Practice: Always dry-fit the components on a cardboard template before drilling the actual stone.
Common Mistake: Placing the hand shower too close to the wall, causing the hose to tangle constantly.
Common Mistake: Forgetting to account for the physical swing radius of the hot and cold handles.
You must verify the plumbing infrastructure first. Does the new fixture come paired alongside its exact rough-in valve? Do you need a direct fit for pre-installed older plumbing? Upgrading an existing deck limits your options significantly. You must match the existing hole sizes and internal valve depths. Start your search by eliminating any fixtures lacking compatible rough-in kits.
Compare the manufacturer specifications against your physical space. Do the shank lengths explicitly match the finalized deck thickness? Does the spout reach completely clear the inner tub rim? Measure your space three times. Compare those numbers directly against the product cut sheet. Discard any options falling short of your required spout reach.
Always demand proper industry certifications. Look for cUPC certification stamped clearly on the product documentation. This guarantees compliance with North American plumbing codes. Seek a transparent warranty covering both the internal cartridge and the surface finish. Lifetime limited warranties indicate high manufacturer confidence. Avoid imported fixtures lacking basic plumbing certifications entirely.
Download the official specification sheet for your shortlisted hardware.
Print the diagram showing exact dimensions and under-deck requirements.
Hand this document directly to your plumber or contractor.
Ask them to confirm joist clearances and flow rate compatibility.
Proceed with the purchase only after receiving their final approval.
A successful tub installation prioritizes unseen mechanics over exterior design aesthetics. The hidden valves, flexible hoses, and sub-deck clearances dictate long-term performance. Measuring your exact deck thickness prevents frustrating installation delays. Confirming the required GPM ensures a luxurious and functional soaking experience. You must always secure a complete fixture-and-valve system together. Mixing mismatched plumbing parts invites catastrophic leaks. By utilizing this evaluation framework, you eliminate guesswork entirely. You will confidently execute your bathroom upgrade and enjoy reliable functionality.
A: Yes, but it requires drilling a new hole if the deck material allows it safely. You must also change the under-deck plumbing. This extra step accommodates the specific diverter and hand shower connection required by a true four hole bathtub faucet. Ensure you have adequate space beneath the deck.
A: No. Brands use proprietary spline counts and specific valve depths. You cannot typically mix brands between the rough-in valve and the exterior trim kit. Always verify compatibility before purchasing. Buying a complete bundled set remains the safest approach.
A: The spout should completely clear the inner rim. It needs to drop water directly inside the basin. This usually requires a minimum of 2 to 3 inches of reach past the interior wall. Proper reach prevents messy water runoff and deck damage.
